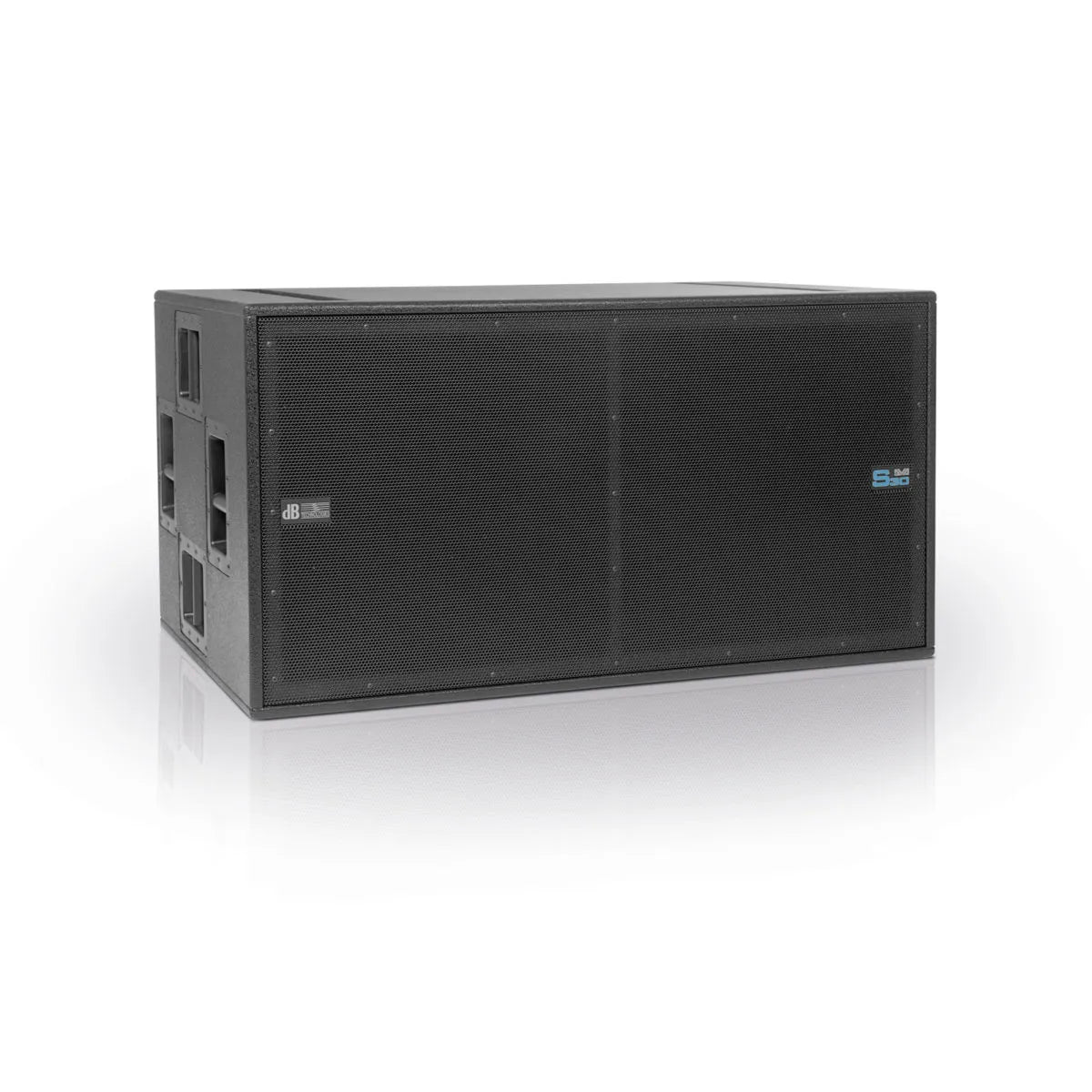

Db Technologies Dva S30n Dual 18" Active Bassreflex-Horn Subwoofer 6000 Watts

DVA S30 N sub features a sophisticated hybrid design able to bring together the benefits of bass reflex and horn systems in a compact housing, engineered to render low frequencies with high sound pressure levels. The two baffle boards are arrayed in the form of a V and guide the central bass reflex channel‘s sound energy into the horn's port. This funneling action is smooth and uniform, greatly increasing its range.The high-quality multiplex housing is covered in robust black textured lacquer and equipped with eight grips.

Tech specs / Technical Data

• Speaker Type: Active Bassreflex-Horn Subwoofer
• Acoustical data
• Frequency Response [+/- 3dB]: 30 - 120 Hz
• Max SPL: 141 dB
• Directivity: Omnidirectional, Cardiod Option with DSP setup
• LF: 2x18 "
• Voice Coil LF: 4 "

Amplifier

• Amp Technology: Digipro® G2

• Amp Class: Class D

• Power Supply: 3 kW SMPS

• LF Amp: 3000 W RMS

• Cooling: Convection

Processor

• Controller: DSP 56 bit

• AD/DA Converter: DSP 24 bit/48 kHz

• System Presets: X-Over,Delay

• Phase: 0, 180 °

• Limiter: RMS, Peak, Thermal

• Delay Option: 0-4.5 ms internal

• Crossover Frequency LF-MF: 75-120Hz ' steps of 5Hz

• LF-Xover out slope: 24 dB/Octave

Input / Mechanics

• Housing: Multiplex birch plywood
• Housing Design: Rectangular
• Handles: 4x Per Side
• Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
• Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
• Width: 1100 mm (44 in)
• Height: 580 mm (23.2 in)
• Depth: 720 mm (28.8 in)
• Weight: 83 kg (182.98 lbs
